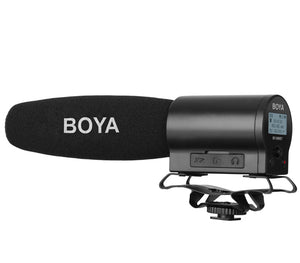

Boya By-Dmr7 Shotgun Microphone With Integrated Flash Recorder
The BOYA BY-DMR7 Shotgun Microphone with Integrated Flash Recorder is a broadcast quality condenser microphone specially designed for DSLR cameras and camcorders.
The integrated flash recording allows you to record 24-bit/48kHz wav audio files to Micro SDHC cards (not included), supporting capacities up to 32GB. It features one-button recording and an easy-to-read menu display, making your recording work much easier. The 3.5mm data cable connects the BY-DMR7 Recorder to your camera's audio input, while the stereo headphone output allows you to monitor incoming audio. The shock mount system provides isolation from vibration and mechanical noise.
- Joystick Control
- Integrated Flash Recorder
- Wide frequency range
- Camera-On Condenser Microphone
- Supercardioid polar pick up pattern
- Records 24-bit/48kHz wav audio to a Micro SDHC card
- Easy-to-use menu system and LCD display
- Detachable 3.5mm Gold-Plated Audio Cable
- Switchable low-cut filter
- 3.5mm headphone monitor input
- Standard size shoe mount
- Includes Foam Windscreen
- Low self-noise
SPECIFICATIONS
Type | Condenser Microphone |
Polar Pattern | Supercardioid |
Recording Format | WAV, 16bit/24bit, 24kHz/48kHz Sampling Rate |
Frequency Response | 50 Hz to 20 kHz |
Maximum SPL |
0 dB Gain Setting, 1 kHz at 1% THD, 1000 Ω load 110 dB SPL |
Signal to Noise Ratio | 78 dB |
Operating Temperature Range | -17°C (0°62.6F) to 57°C (134.6°F) |
Audio Output Impedance | 47 |
Headphone Output Impedance | 5Ω |
Plug | 3.5mm jack plug |
Power | Two AA batteries |
Dimensions | 249 x 50 x 98 mm |
Net Weight | 140g |
